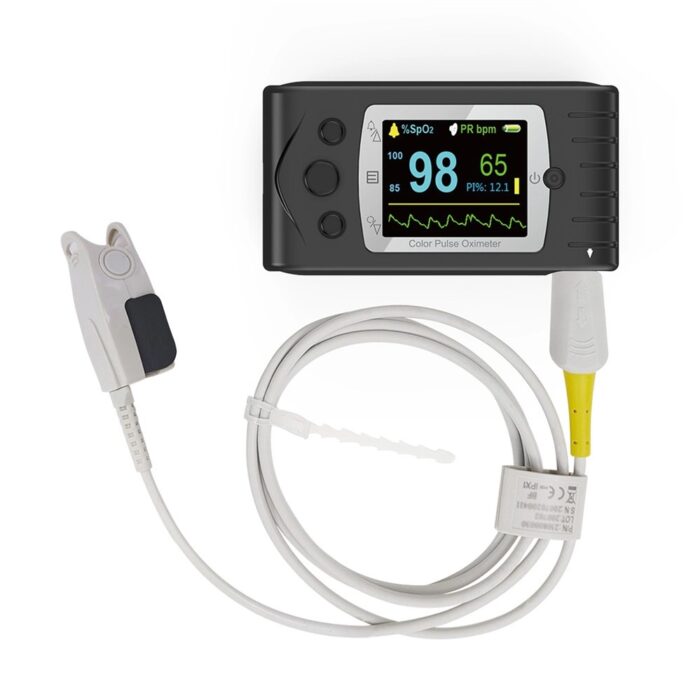

CMS60C Handheld Finger Clip Pulse Oximeter

Features:

  • Compact and Lightweight: Small in volume, light in weight, and convenient to carry, making it ideal for use in various settings.
  • Operation Menu: Provides a user-friendly operation menu for function settings.
  • SpO2 Value Display: Clearly displays oxygen saturation levels.
  • Pulse Rate Display: Shows pulse rate values along with a bar graph display for easy reading.
  • Pulse Waveform Display: Provides a visual representation of the pulse waveform.
  • Adjustable Brightness: Screen brightness can be changed to suit different lighting conditions.
  • Pulse Rate Sound Indication: Audible sound indication for pulse rate, aiding in monitoring.
  • Overrun Prompt Function: Adjustable upper and lower limit settings with an overrun prompt function.
  • Battery Capacity Indication: Displays the remaining battery capacity to ensure timely replacement.
  • Low-Voltage Indication: Alerts when the battery voltage is low to prevent abnormal operation.
  • Data Storage Function: Stores data that can be uploaded to a computer for analysis.
  • Real-Time Data Transmission: Capable of transmitting data in real-time.
  • External SpO2 Probe: Includes an external SpO2 probe for enhanced measurement accuracy.



Performance:

  • Display Mode: 1.77” color screen.
  • Screen Resolution: 128*160.
  • SpO2 Measuring Range: 0%-100% (resolution is 1%).
  • Accuracy: 70%-100%: ±2%, 0%-69%: unspecified.
  • PR Measuring Range: 30bpm~250bpm (resolution is 1bpm).
  • Accuracy: ±2 bpm (30 bpm ~ 99 bpm), ±2% (100 bpm ~ 250 bpm).
  • Low Perfusion Accuracy: SpO2 and pulse rate can be shown correctly when the pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm (30 bpm ~ 99 bpm), ±2% (100 bpm ~ 250 bpm).
  • Light Interference: Under normal and ambient light conditions, SpO2 deviation ≤ 1%.
  • Power Consumption: ≤ 100mA.
  • Working Voltage: DC 3.6V-4.2V.
  • Battery: 3.7V rechargeable lithium battery × 1.
  • Battery Life: No less than 500 charge and discharge cycles.
  • Safety Type: Internally powered equipment, Type BF applied part.



Accessories:



Standard:

  • User Manual (1pc).
  • Data Line (1pc).
  • SpO2 Probes (1pc).



Optional:

  • Power Adapter.
  • Other SpO2 Probes.



Physical Characteristics:

  • Dimensions: 87(L) × 45(W) × 22(H) mm.
  • Weight: About 68g (with one lithium battery).
